| 普通型 MTZ-100 |
|

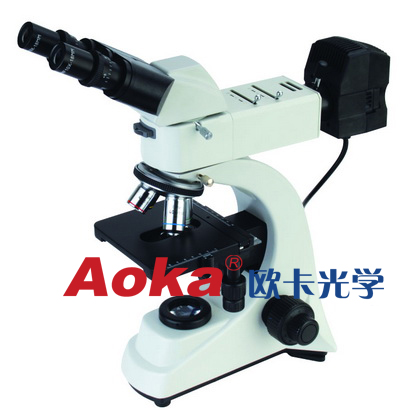

MTZ-100金相显微镜 欢迎致电欧卡光学仪器：86-512-57936880
正置式金相显微镜
Up-right Metallurgical Microscope
无限远光学系统，提供了卓越的光学性能，广泛应用于机械.矿产工业进行金属、岩矿等的组织鉴别，以及半导体、电子
工业进行晶体、集成电路的检验和科学研究。该显微镜同时配备透射照明、成像和观察系统，可用于生物、病理等研究。
Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, integrated circuit
examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and
accessories as a biological microscope for medical institute use.
配制表(configuration)
|
组件（Parts） |
规格(standard) |
HJ1 |
|
观察头Viewing Head |
双目观察头Binocular Head |
● |
|
目镜Eyepiece |
WF10X/18 |
● |
|
WF10X/18带0.1mm刻尺及十字分划
WF10X/18 W/0.1mm micrometer and cross hair |
○ |
|
WF8X/18 |
○ |
|
WF12.5X/15 |
○ |
|
物镜Objective |
无穷远平场消色差物镜
Infinitive plan achromatic objectives |
4X/0.1/∞/-WD25.4mm |
● |
|
10X/0.25/∞/-WD11.0mm |
● |
|
20X/0.40/∞/-WD6.0mm |
○ |
|
40X/0.60/∞/-WD3.7mm |
● |
|
80X/0.90/∞/-WD0.2mm |
○ |
|
转换器Nosepiece |
四孔转换器Quadruple Nosepiece |
● |
|
载物台Stage |
双层活动平台，尺寸150×140mm，移动范围75×50mm
Double layer mechanical stage, Size 150×140mm, Movement 75×50mm |
● |
|
焦距调节Focusing |
同轴粗微调焦机构Coaxial fine and coarse adjustment |
● |
|
照明
Illumination |
柯拉照明，垂直照明系统带孔径可变光栏和视场可变光栏；反射光照明，6V20W卤素灯，亮度可调
Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm. 220V or 110V/6V20W Halogen Lamp, Brightness Adjustable |
● |
|
滤色片
Filters |
蓝色、绿色、黄色 、磨砂玻璃片
Blue, Green, Yellow ，Ground Glass |
● |
|
偏光装置Polarization Attachment |
|
○ |
注：●为标准配置，○为选购件
Mark: ●Item include, ○Item for Option
